Vehicle Fitment Finder
625570Dual Radiator and Condenser Fan Assembly

TYC Cooling Fan Assembly


  • OE-comparable harness (no pigtail connector) for hassle-free installation.
  • OE-comparable mounting provisions ensure drop-in precise fitment.
  • Rigorous laboratory and in-vehicle tests to ensure durability and performance.

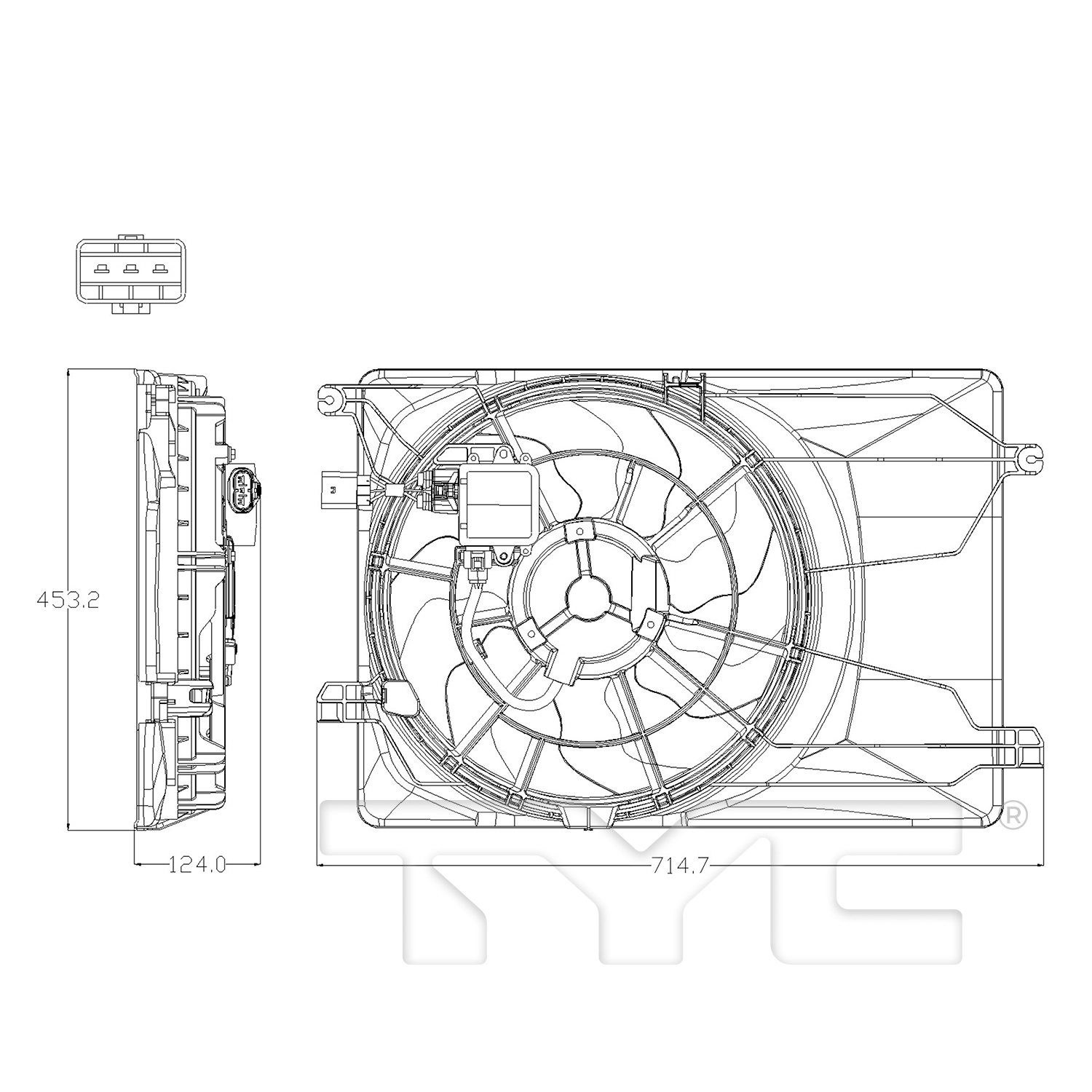

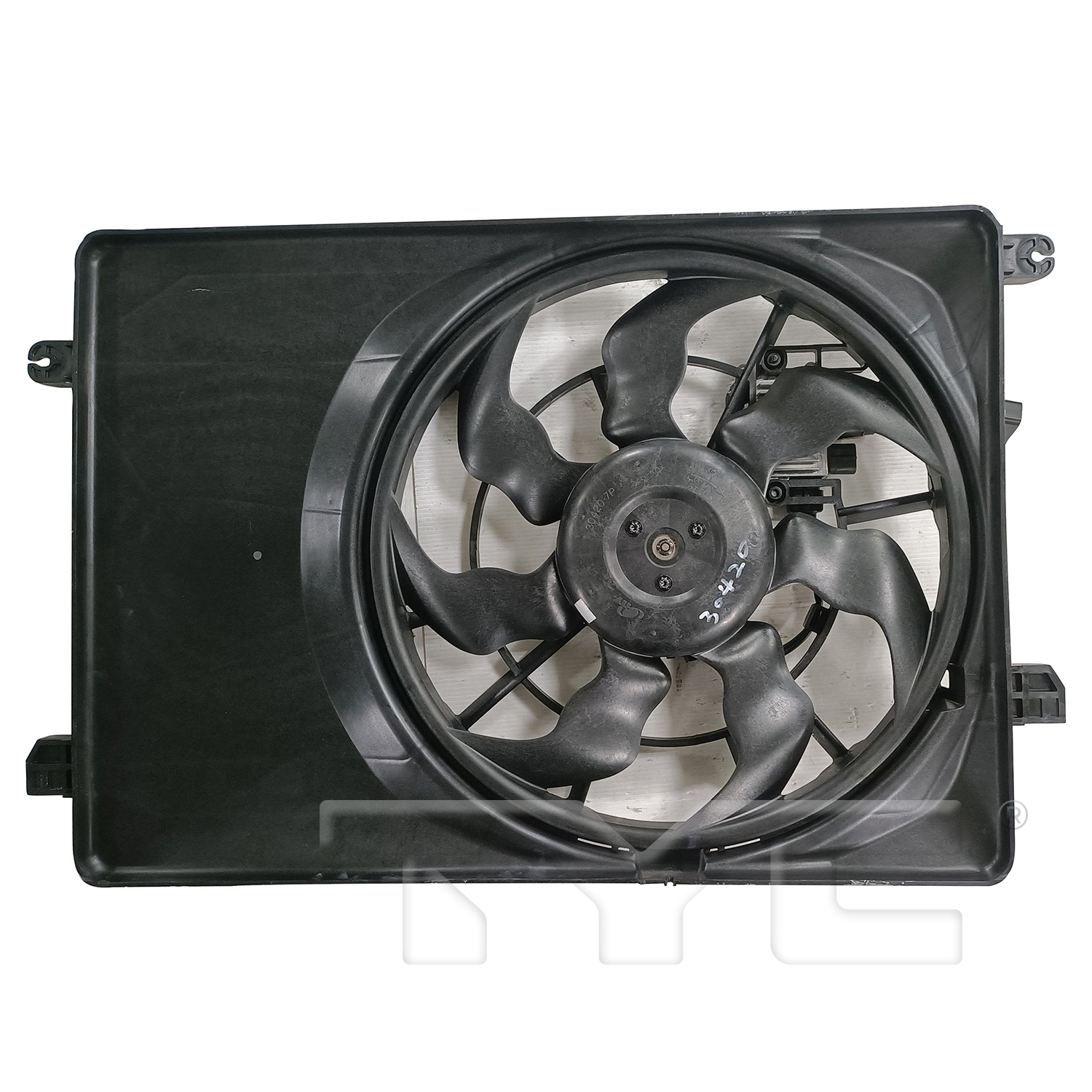

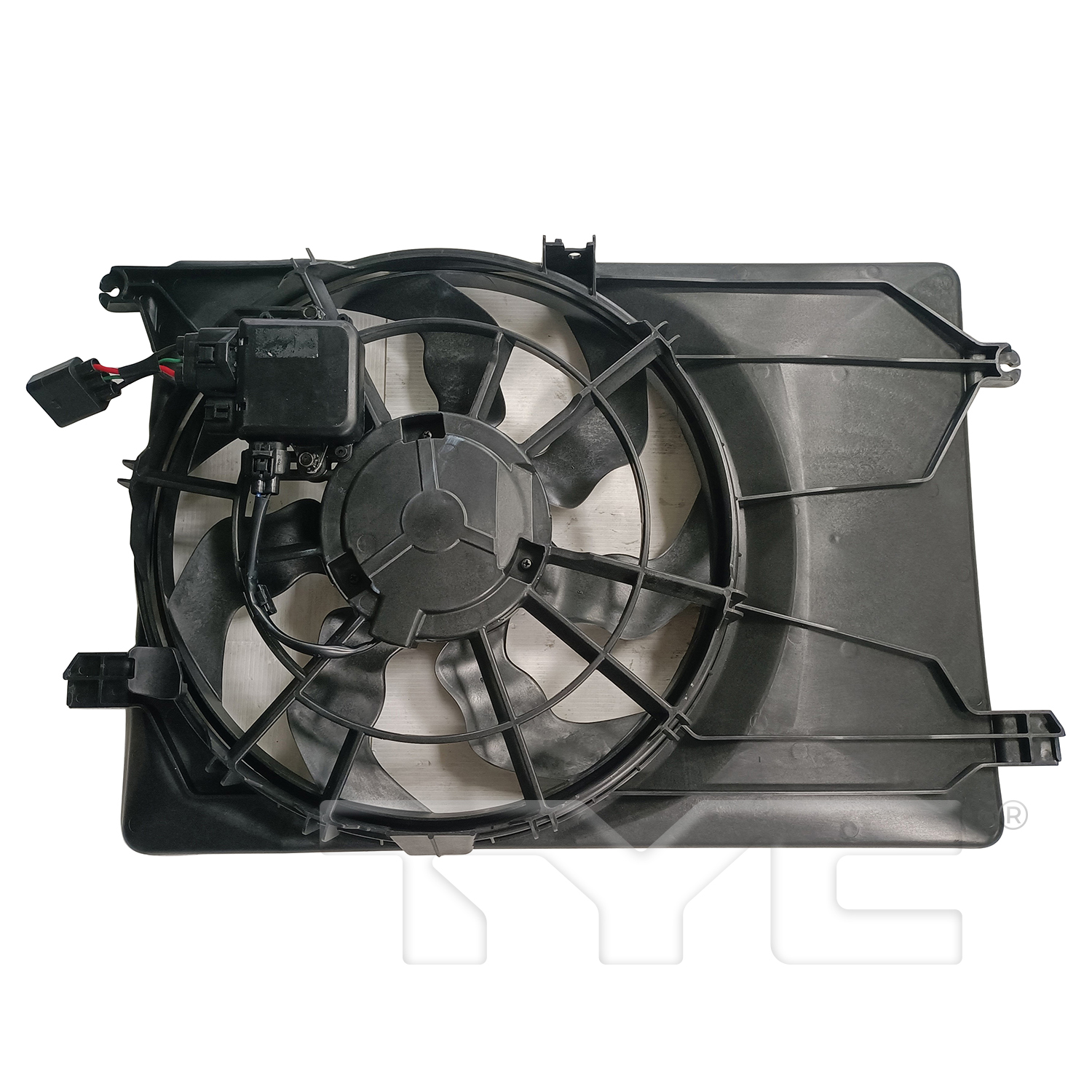

Configuration: Dual Radiator and Condenser Fan Assembly

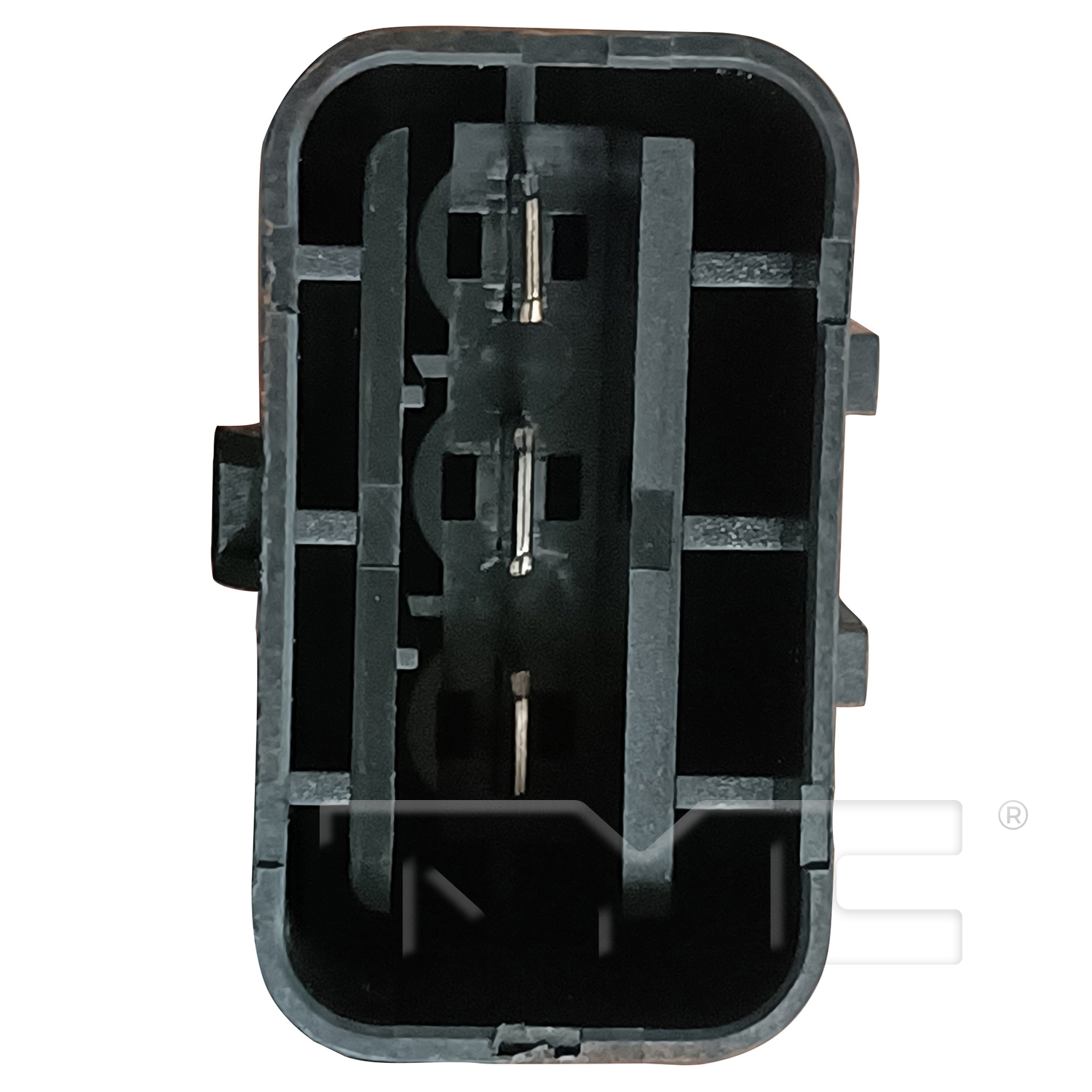

Connector Quantity: 1
Connector Terminal Quantity: 3
Connector Type: Male
Fan Blade Material: PA + GF
Fan Type: Single
Shroud Included: Yes
Shroud Material: PA + GF
Make Model Qualifiers Year
Kia Sportage
  • Position: N/A
  • EX S
  • 2.4L L4 2359cc
  • Sport Utility
  • AWD
 2020-2022
Kia Sportage
  • Position: N/A
  • EX Premium S
  • 2.4L L4 2359cc
  • Sport Utility
  • AWD
 2020-2022
Kia Sportage
  • Position: N/A
  • EX Premium
  • 2.4L L4 2359cc
  • Sport Utility
  • AWD
 2020-2021
Kia Sportage
  • Position: N/A
  • LX
  • 2.4L L4 2359cc
  • Sport Utility
  • AWD
 2017-2022
Kia Sportage
  • Position: N/A
  • S
  • 2.4L L4 2359cc
  • Sport Utility
  • AWD
 2020-2021
Kia Sportage
  • Position: N/A
  • EX Tech
  • 2.4L L4 2359cc
  • Sport Utility
  • AWD
 2020-2021
Kia Sportage
  • Position: N/A
  • LX S
  • 2.4L L4 2359cc
  • Sport Utility
  • AWD
 2020-2021
Kia Sportage
  • Position: N/A
  • EX
  • 2.4L L4 2359cc
  • Sport Utility
  • AWD
 2017-2022
Kia Sportage
  • Position: N/A
  • SXL
  • 2.4L L4 2359cc
  • Sport Utility
  • AWD
 2017-2019
Kia Sportage
  • Position: N/A
  • Nightfall Edition
  • 2.4L L4 2359cc
  • Sport Utility
  • AWD
 2022

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
25380-D9900Kia
6010547APDI
76430Four Seasons
FA50701CUAC
KI3115149Partslink

Country Of OriginTaiwan
Life Cycle StatusAnnounced
